| al-12 | 2 x al-12 & V3 |
DESCRIPTION | High Output Line Array Element | Mid-sized Line Array System |
ACOUSTIC DATA |
Frequency Response (+-2.5 dB) | 62 Hz to 19 kHz | 62 Hz to 18 kHz |
Frequency Range (-10 dB) | 47 Hz – 28 kHz | 47 Hz – 26 kHz |
Sensitivity (1W/1m) | 102 dB SPL | 105 dB SPL |
Power Long Term Sine Wave Before Protection LF:Before Protection MF:Before Protection HF: | 800 watts830 watts120 watts | 1600 watts1600 watts240 watts |
Power Burst (6 dB Crest before clip)LF:MF:HF: | 2000 watts2000 watts800 watts | 4000 watts4000 watts800 watts |
Max Peak SPL †Measured (band limited pink noise 6 dB crest factor) | 144 dB SPL | 150 dB SPL |
Max SPL Long Term (AVG SPL @1M before protection band limited pink noise) | 131.5 dB SPL | 137.5 dB SPL |
Coverage Horizontal | 90 degrees – 6 dB | 90 degrees – 6 dB |
Coverage Vertical | 10 degrees – 6 dB | Dependent on array configuration |
TRANSDUCER DATA |

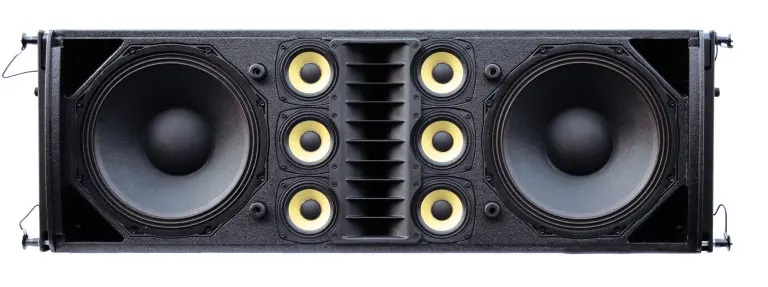

LF Driver Description | Two 12-inch drivers, 3-inch voice coils, neodymium magnets |
MF Driver Description | Six 4-inch drivers, Kevlar cones, impregnated linen surrounds, neodymium magnets |
HF Driver Description | Two 1.4-inch exit 76 mm (3”) voice coils, Pure Truextent® beryllium diaphragm |
Impedance | 8/8/8 Ω (L/M/H) | 4/4/4 Ωs net 2x 8/8/8 Ω |
PHYSICAL DATA |
Rigging: | Four-point rigging system, angles between elements: 0° 0.5°, 1°, 2°, 2.5°, 3°, 4.5°, 5°, 6°, 6.5°, 7°, 8°, 8.5°, 9°, 10° |
Connectors | Neutrik NL8 Speakon |
Cabinet Material | Multi-ply birch hardwood |
Cabinet Surface | Dura-Coat LX – an elastomer synthetic resin chemical coating |
Handles | Recessed Metal Side & Rear |
Dimensions (H x W x D) | 14.05 x 42.13 x 16.85 in (44.37 in wide with fly pins)357 x 1070 x 428 mm (1127 mm wide with fly pins) |
Weight (per element) | Net: 124.3 lbs (56.38 kg) / Shipped: 141.5 lbs (64.18 kg) |
ACCESSORIES |
al-12FB | Fly bar for al-12 acoustic elements |
al-12UFB | Transition fly bar from al-12’s to al-8’s |
al-12-4XTR | Transport rack for up to 4x al-12 acoustic elements |
fc-al12FB-2x | Flight case for 2x al-12FB and 2x al-12UFB |
† Measured Max SPL is recommended for system design purposes and represents the average peak output before protection and after power compression. In accordance with common industry practice, calculated data is provided for comparison purposes, and is a theoretical calculation. |

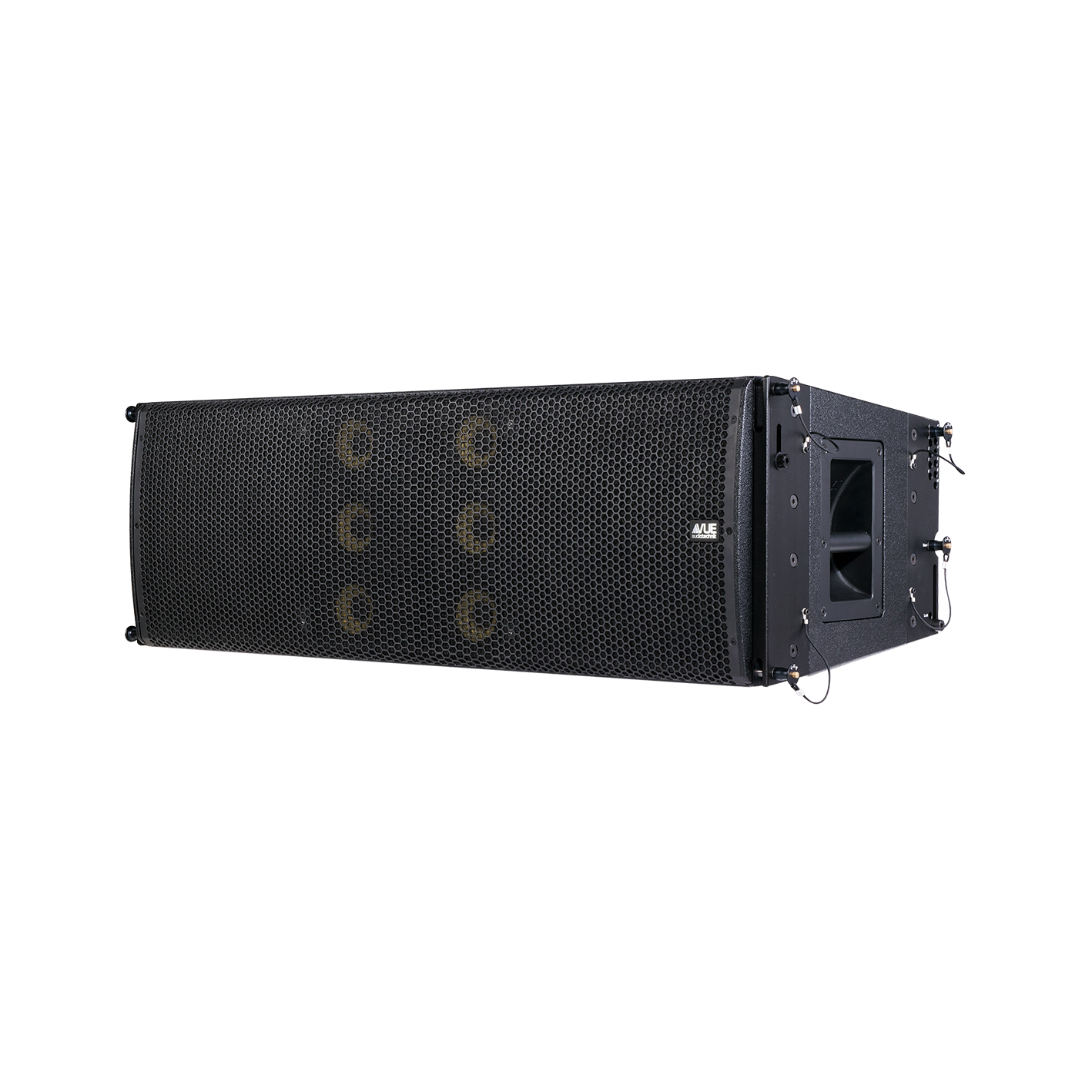

al-12 – 12" 3-웨이 라인어레이 패시브 스피커
기본 정보

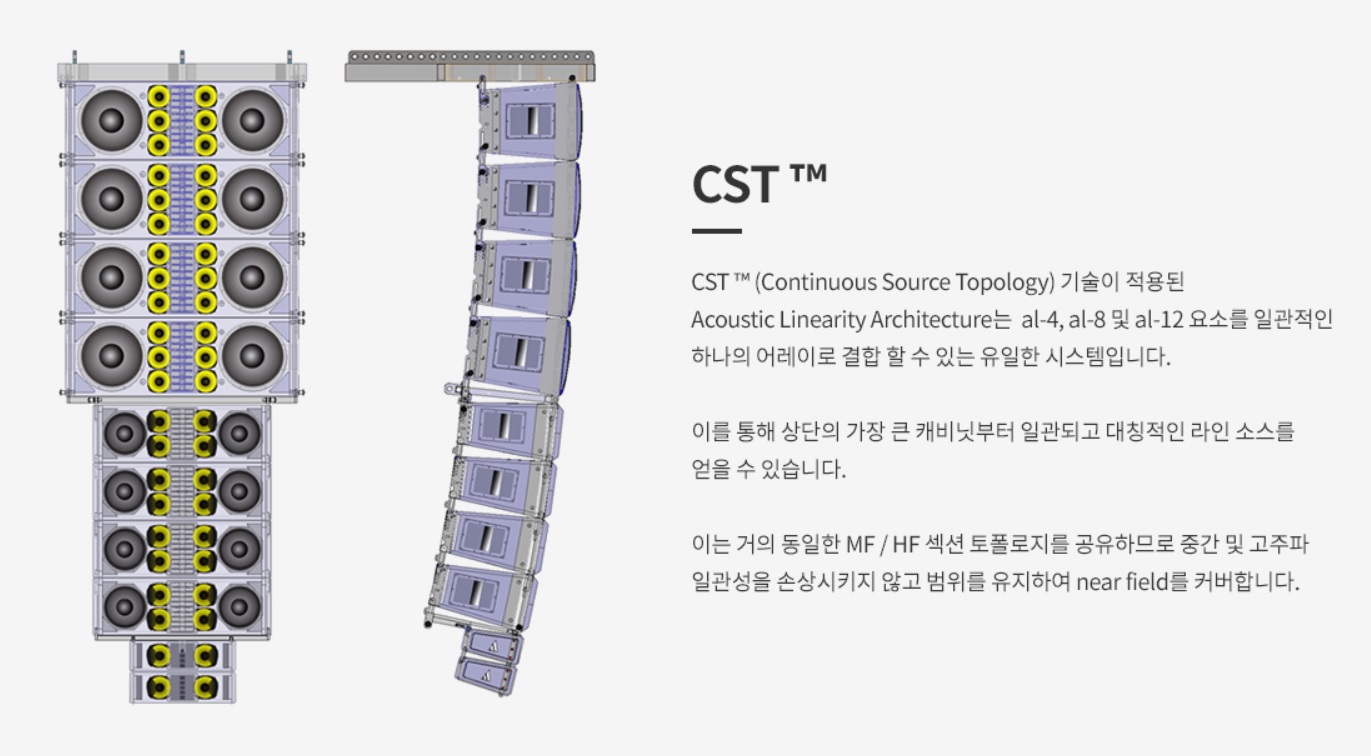

VUE의 al-Class 라인 어레이 시스템은 고급 트랜스듀서 설계와 완벽하게 통합된 DSP의 조합을 통해 세계에서 인정받는 어쿠스틱 리니어리티를 구현하였습니다. al-12는 이 어쿠스틱 리니어리티에 보다 집중하여 전체 출력을 더욱 극적으로 증가시켜 al-Class의 우수한 성능을 통해 다양한 어플리케이션에서 사용할 수 있도록 설계되었습니다.
VUE는 al-4 및 al-8 시스템에서 구현하였던 뛰어난 음질을 갖춘 대규모 애플리케이션을 위한 고출력 시스템을 만들기 위해 많은 노력을 해 왔습니다. VUE의 소형 라인 어레이 시스템의 대역폭, 선명도 및 선형성을 유지하면서 대형 경기장 애플리케이션에 필요한 출력 레벨을 생성하는 것은 결코 쉬운 일이 아니었습니다. 사실, 가능성에 대한 재고가 필요했고, 그 결과 완전히 새로운 al-12 만의 고급 트랜스듀서 세트와 더불어 새로운 서스펜션 설계 및 시스템 패키징이 개발되었습니다.
al-12는 처음부터 하이브리드 어레이로 구성하기 위한 모든 al-Class 시스템과 통합할 수 있는 고유한 기능을 유지하면서 대규모 애플리케이션을 지원하도록 설계되었습니다. al-12는 VUE의 독자기술인 CST™을 활용하여 함께 하이브리드로 구성된 모든 al-Class 라인 어레이 스피커에서 균형 잡힌 뛰어난 성능을 보장합니다.

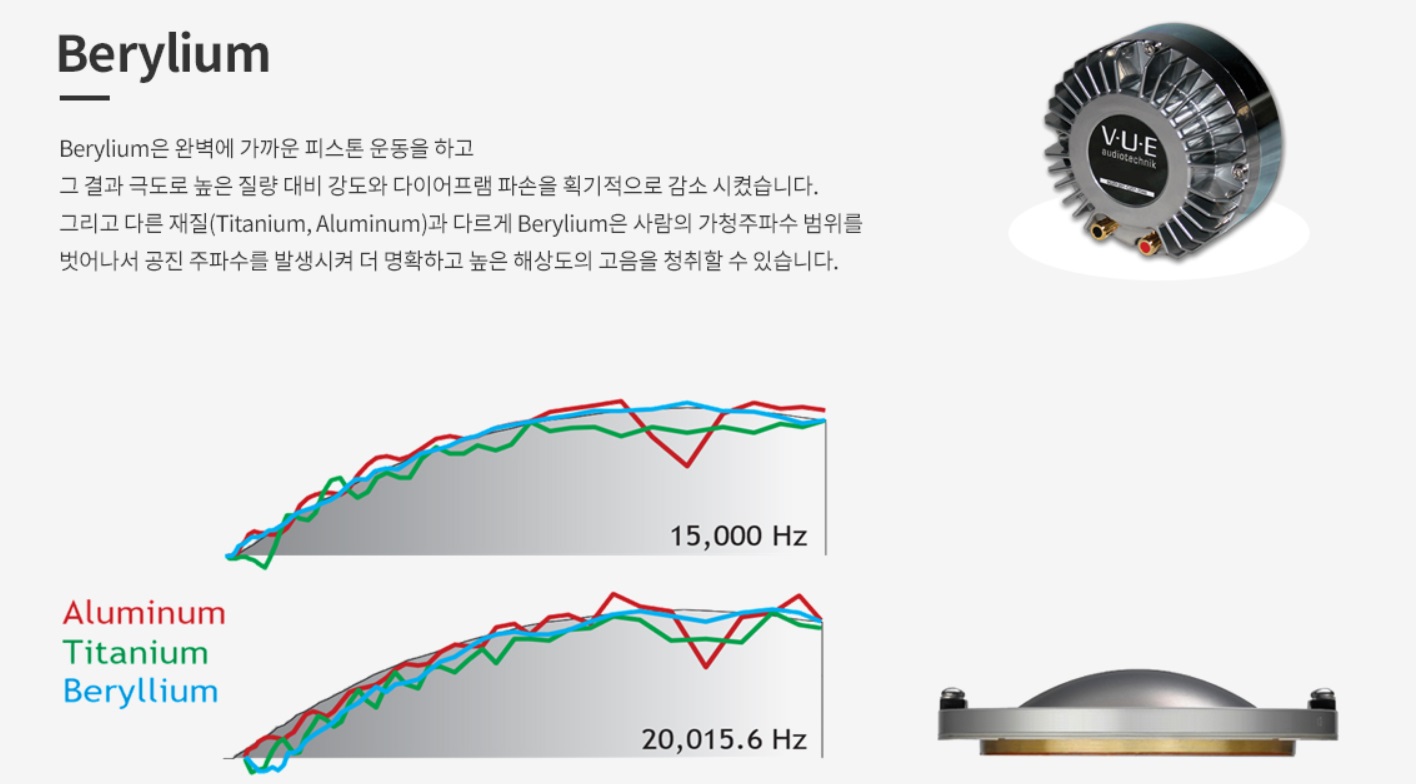

al-Class의 al-4 및 al-8과 마찬가지로 al-12 라인 어레이 시스템은 VUE의 가장 앞선 기술과 혁신적인 디자인을 활용하여 뛰어난 음향 성능뿐만 아니라 경쟁 제품에 없는 다양성을 제공합니다. 3인치 베릴륨 압축 드라이버, Kevlar/Neo 트랜스듀서, 정밀한 온보드 DSP, SystemVUE 네트워킹과 같은 최첨단 기술을 통해 al-12는 훨씬 더 광범위한 사운드 강화가 필요한 현장에 전례 없는 성능을 제공할 수 있습니다.
al-12 라인 어레이 시스템'은 V3 시스템 엔진을 사용합니다. V3는 고도로 정제된 DSP 아키텍처와 온보드 SystemVUE 네트워킹 기능을 제공하여 SystemVUE 소프트웨어를 통해 직관적인 원격 관리 및 제어가 가능합니다.
기본 사양
al-12
2 x al-12 & V3
DESCRIPTION
High Output Line Array Element
Mid-sized Line Array System
ACOUSTIC DATA
Frequency Response (+-2.5 dB)
62 Hz to 19 kHz
62 Hz to 18 kHz
Frequency Range (-10 dB)
47 Hz – 28 kHz
47 Hz – 26 kHz
Sensitivity (1W/1m)
102 dB SPL
105 dB SPL
Power Long Term Sine Wave Before Protection LF:Before Protection MF:Before Protection HF:
800 watts830 watts120 watts
1600 watts1600 watts240 watts
Power Burst (6 dB Crest before clip)LF:MF:HF:
2000 watts2000 watts800 watts
4000 watts4000 watts800 watts
Max Peak SPL †Measured (band limited pink noise 6 dB crest factor)
144 dB SPL
150 dB SPL
Max SPL Long Term (AVG SPL @1M before protection band limited pink noise)
131.5 dB SPL
137.5 dB SPL
Coverage Horizontal
90 degrees – 6 dB
90 degrees – 6 dB
Coverage Vertical
10 degrees – 6 dB
Dependent on array configuration
TRANSDUCER DATA
LF Driver Description
Two 12-inch drivers, 3-inch voice coils, neodymium magnets
MF Driver Description
Six 4-inch drivers, Kevlar cones, impregnated linen surrounds, neodymium magnets
HF Driver Description
Two 1.4-inch exit 76 mm (3”) voice coils, Pure Truextent® beryllium diaphragm
Impedance
8/8/8 Ω (L/M/H)
4/4/4 Ωs net 2x 8/8/8 Ω
PHYSICAL DATA
Rigging:
Four-point rigging system, angles between elements: 0° 0.5°, 1°, 2°, 2.5°, 3°, 4.5°, 5°, 6°, 6.5°, 7°, 8°, 8.5°, 9°, 10°
Connectors
Neutrik NL8 Speakon
Cabinet Material
Multi-ply birch hardwood
Cabinet Surface
Dura-Coat LX – an elastomer synthetic resin chemical coating
Handles
Recessed Metal Side & Rear
Dimensions (H x W x D)
14.05 x 42.13 x 16.85 in (44.37 in wide with fly pins)357 x 1070 x 428 mm (1127 mm wide with fly pins)
Weight (per element)
Net: 124.3 lbs (56.38 kg) / Shipped: 141.5 lbs (64.18 kg)
ACCESSORIES
al-12FB
Fly bar for al-12 acoustic elements
al-12UFB
Transition fly bar from al-12’s to al-8’s
al-12-4XTR
Transport rack for up to 4x al-12 acoustic elements
fc-al12FB-2x
Flight case for 2x al-12FB and 2x al-12UFB
† Measured Max SPL is recommended for system design purposes and represents the average peak output before protection and after power compression. In accordance with common industry practice, calculated data is provided for comparison purposes, and is a theoretical calculation.
